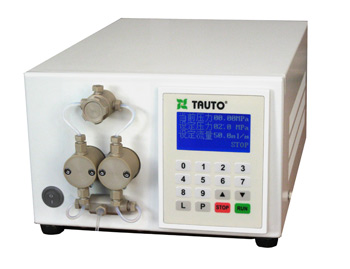

TBP 2H02K Constant Flow Pump



TBP-K series constant flow pump’s pipeline and pump head is made of Peek material which is resistant to chemicals, strong acids and strong bases, is of good water resistance and fatigue resistance, is of toughness as well as hardness. It is totally biocoMPatible and protects bioactive liquids. This series constant flow pump is mainly used in the domains of chemical engineering, biology, petrochemical engineering, coal, dyestuff, fine chemistry, pesticide, pharmacy, food and etc.

SPECIFICATIONS

Flow Rates

1-200 ml/min

Pressure

0 - 2.0MPa

Pulsation

≤ 0.20MPa

Pressure Accuracy

≤ 0.10MPa

Flow Accuracy

≤ 2% (1 - 50ml/min)

≤ 1.5% (50 - 200ml/min)

Flow Precision

≤ 1.5% (1 - 50ml/min)

≤ 1% (50 - 200ml/min)

Pipeline Materials Ruby、Peek、PTFE、Zirconia ceramics

Power Source

220V±10%,50/60Hz

Power

75W

Dimensions

360 mm × 260 mm × 160 mm

Weight

12Kg

STANDARD FEATURES & CONTROLS

  • Dual Self Flushing Pump Heads for Reduced Pulsation
  • Dual ball and High Quality Plunger for Consistent and Precise Flow Performance
  • Real-time pressure monitoring.
  • Simple Front Panel Key Pad Controls with Big LED Display
  • Overvoltage protection and Flow Correction System
  • Materials resistant to chemicals used, including organic solvents
  • Stainless Steel or PEEK Fluid Path
  • Prime Purge Valve
  • RS-232 Serial Com Port for Complete Control & Status Monitoring

APPLICATION FIELDS

  • Chromatography analysis
  • Organic synthesis
  • Botanic chemistry
  • Bioengineering
  • Fine chemistry
  • Pharmaceutical chemistry
  • Life science
  • Environment protection

Control System Software

  • Real-time Display of Current Pressure, Set Pressure and Set Flow Rate
  • Real-time Display In Curve of Working Pressure
  • Operation via Computer
  • Timing Function For The Facility of Working Time Setting
  • Function of Saving Current Working Pressure For Checking
  • Function of Printing Important Parameters Such As Current Pressure
